Informationen zur J - 6

L.S.BRACH MILITARY KEY:

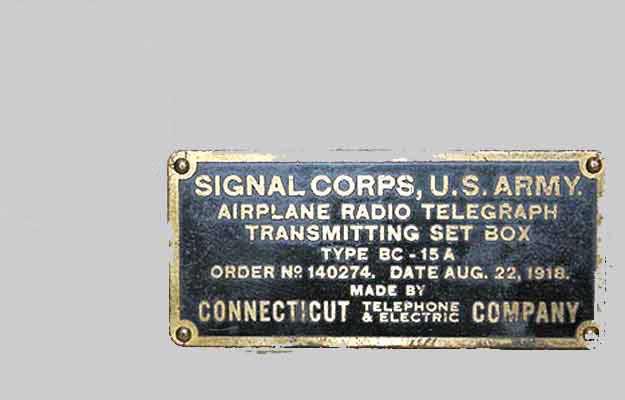

The J-5, J-6, and J-7 were used with the BC15 airborne spark transmitter and BC89 receiver of WWI vintage.

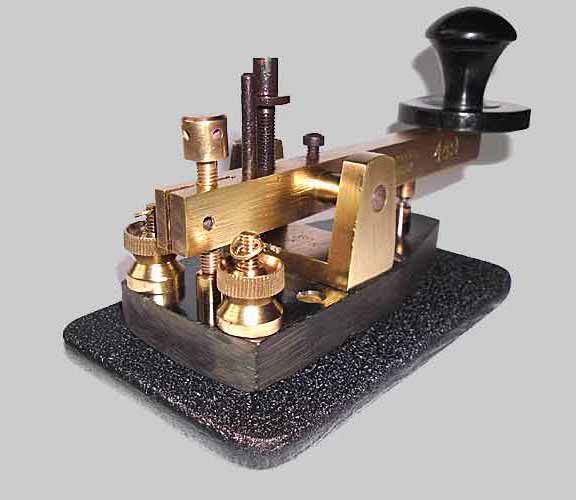

Incorrectly advertised and sold widely as a J-3, this key has a straight, heavy 1/2 X 3/8 X 5-1/4" brass lever with typically British design pull-down spring at far end of pivot.
The base is 1/2" thick, 4" long, and 1-3/4" wide and tapers down to 5/8" wide from pivot toward knob. The wires are sealed inside the base.

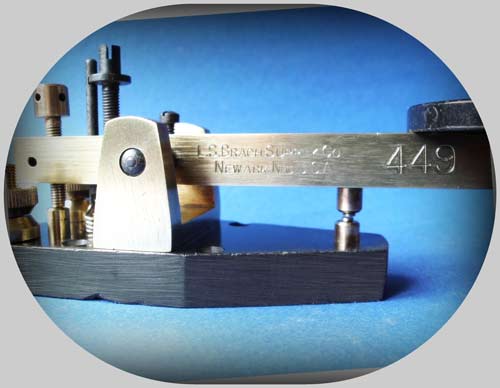

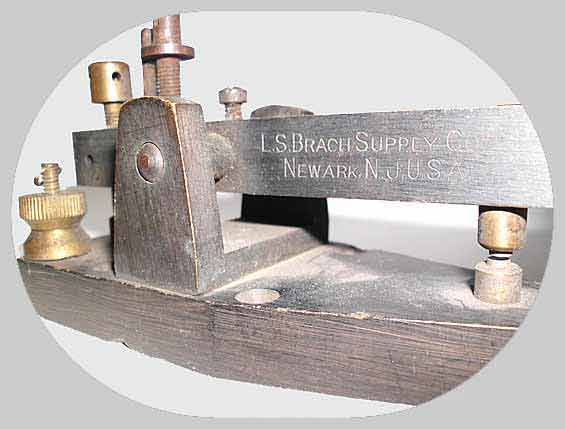

The lever is stamped:

L.S.BRACH SUPPLY CO.
NEWARK, N.J. U.S.A.
449
